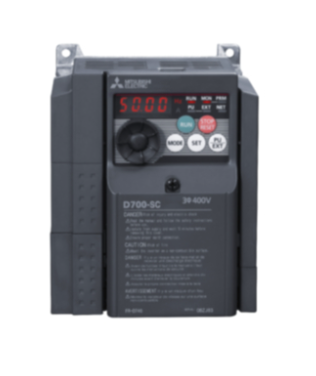

FR-D720-3.7K Mitsubishi Compact Inverter 3.7kw FR-D700 series

Product Categories

Changsha Zhinian Automation Equipment Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: FRD72037K Mitsubishi Compact Inverter 37kw FRD700 series
Brand: Mitsubishi
Price: 50 USD

Brand Name : Mitsubishi

Model Number : FR-D720-3.7K

Place of Origin : China/Japan

MOQ : 1/pc

Price : $50-500

Payment Terms : T/T, western union

Supply Ability : 10pc/per week

Packaging Details : Carton packaging

Display : 4 digits led

Phases : 3

Quality : new and original

Current Type : AC

Warrenty : 1 year

Delivery Detail : 3-5 working days after payment

Port : Guangdong Shenzhen Dongguan

Contact Now

FR-D700 series is a multi-functional compact inverter, allowing you to easily enter the field of modern variable frequency drive technology.

FR-D720-3.7K Mitsubishi Compact Inverter 3.7kw FR-D700 series

Series	FR-D700 SERIES
Type	FR-D700 COMPACT INVERTER
Minimum Rated Voltage (V)	200
Min. Permissible Voltage (V)	170
Maximum Rated Voltage (V)	240
Max. Permissible Voltage (V)	264
Current Type	AC
Phases	3
Rated Output Current ND (A)	16,5
Rated Motor Capacity ND (kW)	3,7
Control Method	V/F CONTROL, MAGNETIC FLUX VECTOR CONTROL, SOFT-PWM/HIGH FREQUENCY PWM
Motor Type	INDUCTION MOTOR
Brake Chopper ED (%)	30
Integrated EMC Filter	NO
Safe Torque Off (STO)	YES
Regenerative (4Q)	NO
Integrated DC Choke	NO
Display	BUILT-IN
Display Type	4 DIGITS LED
PLC Function	NO
Integrated Digital Inputs	5
Digital Outputs (Transistor)	1
Digital Outputs (Relay)	1
Integrated Analogue Inputs	2
Integrated Analogue Outputs	1
IO Type of Terminal Block	SPRING CLAMP
Expandable	NO
RS-485	1
USB	NO
Ethernet Port	NO
Built-In Network	MODBUS-RTU
Leakage Current (mA)	1
Power Loss ND (W)	160
Standby Power Consumption (W)	6-15
Protection Class	IP20

Product Dimensions & Weight

Introduction of FR-D700

Specification

FR-D700 mains power supply specification
